Easy Guide to Installing a 30W Integrated Solar Street Light

Are you looking to illuminate your outdoor spaces with an eco-friendly and cost-effective solution? Look no further than the 30W Integrated Solar Street Light. This guide will walk you through the installation process, ensuring you can harness the power of solar energy to light up your surroundings efficiently. Whether you're a DIY enthusiast or a professional installer, this comprehensive guide will provide you with all the information you need to successfully set up your 30W Integrated Solar Street Light.

​​​​​​​

What are the key components of a 30W Integrated Solar Street Light?

Solar Panel: The Heart of the System

The solar panel is the primary component of a 30W Integrated Solar Street Light, responsible for converting sunlight into electrical energy. In this system, you'll typically find a high-efficiency monocrystalline or polycrystalline panel rated at 30 watts. This panel is designed to capture sunlight during the day, even in low-light conditions, ensuring optimal energy generation. The panel's size and orientation are crucial factors in maximizing its performance. For a 30W Integrated Solar Street Light, the panel is usually tilted at an angle to optimize sunlight exposure throughout the year. The solar panel's durability is also essential, as it needs to withstand various weather conditions while maintaining its efficiency over time.

Battery: Storing Solar Energy for Nighttime Use

The battery is a vital component of the 30W Integrated Solar Street Light, serving as the energy storage unit. Typically, these systems use lithium-ion batteries due to their high energy density, long lifespan, and ability to withstand numerous charge-discharge cycles. For a 30W system, you'll often find a battery capacity ranging from 12V/24Ah to 12V/36Ah, depending on the specific model and desired runtime. The battery is charged during the day by the solar panel and provides power to the LED light during nighttime hours. Most 30W Integrated Solar Street Lights are designed to operate for 10-12 hours on a full charge, with some models featuring intelligent power management systems to extend battery life and ensure consistent performance even during periods of low sunlight.

LED Light: Efficient Illumination

The LED light is the final key component of a 30W Integrated Solar Street Light, responsible for providing bright and energy-efficient illumination. LEDs are chosen for their long lifespan, low power consumption, and high luminous efficacy. In a 30W system, you can expect a light output ranging from 3000 to 4500 lumens, depending on the LED's efficiency. These lights often feature adjustable brightness levels and motion sensors to conserve energy when no one is present. The color temperature of the LED light is typically in the range of 3000K to 6000K, with many models offering cool white light (5000K-6000K) for better visibility. The LED fixture is usually designed with a weather-resistant housing to protect it from the elements, ensuring long-lasting performance in outdoor environments.

How do you choose the right location for your 30W Integrated Solar Street Light?

Assessing Sunlight Exposure

Selecting the optimal location for your 30W Integrated Solar Street Light is crucial for maximizing its performance. Start by assessing the sunlight exposure in potential installation areas. Ideally, you want a spot that receives direct sunlight for most of the day, particularly during peak sunlight hours (typically 10 am to 2 pm). Use a solar pathfinder or smartphone apps to analyze sun patterns throughout the year. Remember that obstacles like trees, buildings, or other structures can cast shadows and reduce the solar panel's efficiency. For a 30W Integrated Solar Street Light, aim for at least 6-8 hours of direct sunlight daily to ensure sufficient charging. Consider seasonal variations in sun angle and adjust the panel's tilt accordingly to optimize year-round performance.

Evaluating Lighting Needs

When choosing the location for your 30W Integrated Solar Street Light, it's essential to evaluate your specific lighting needs. Consider the area you want to illuminate and its purpose. For example, if you're lighting a parking lot, you'll need to ensure even coverage across the entire space. If it's a walkway, focus on providing adequate illumination for pedestrian safety. The 30W Integrated Solar Street Light typically has a light distribution pattern that can cover an area of about 8-12 meters in diameter, depending on the mounting height and light distribution design. Take into account any existing light sources to avoid overlapping or creating dark spots. It's also important to consider potential glare issues, especially if the light will be near residential areas or roads. Position the light to minimize glare while maximizing useful illumination.

Considering Accessibility and Maintenance

While the 30W Integrated Solar Street Light is designed for low maintenance, it's still important to consider accessibility when choosing its location. The installation spot should allow for easy access during setup and for any future maintenance needs. Ensure that the mounting pole or structure is sturdy enough to support the weight of the integrated system, which typically ranges from 20 to 30 kg for a 30W unit. The location should also provide some protection from extreme weather conditions, if possible. While these lights are built to withstand outdoor environments, placing them in areas less exposed to severe winds or flooding can extend their lifespan. Additionally, consider the ease of cleaning the solar panel, as dust and debris accumulation can reduce its efficiency. A location that allows for safe and easy cleaning will help maintain the system's performance over time.

What are the steps to install a 30W Integrated Solar Street Light?

Preparing the Installation Site

Before installing your 30W Integrated Solar Street Light, proper site preparation is essential. Start by clearing the area of any obstacles that might interfere with the installation process or the light's performance. If you're installing on bare ground, you'll need to dig a hole for the mounting pole. The hole should be approximately 60-80 cm deep and 30-40 cm in diameter, depending on the pole's specifications and local soil conditions. If you're mounting on an existing structure, ensure it can support the weight of the 30W Integrated Solar Street Light. Check local regulations regarding depth requirements and obtain any necessary permits. Prepare a concrete mix if you're setting a new pole. For the 30W system, which typically weighs between 20-30 kg, a standard concrete mix should suffice. Have all your tools ready, including a level, wrench set, and safety equipment.

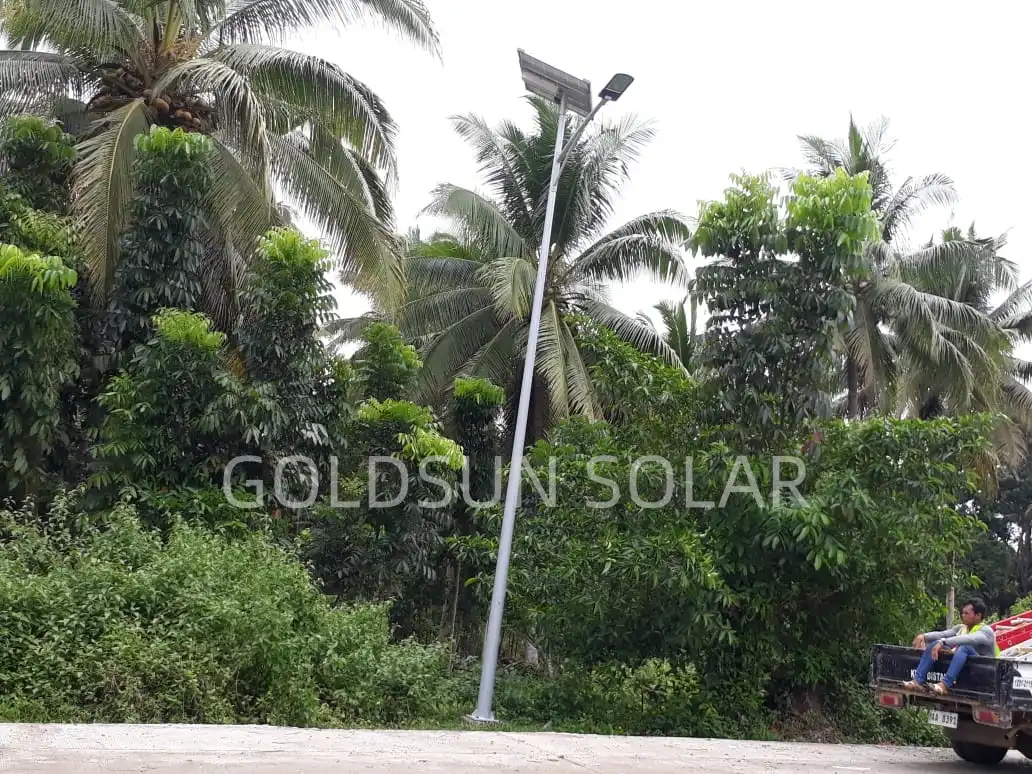

Mounting the Light Fixture

With the site prepared, it's time to mount the 30W Integrated Solar Street Light. If you're using a new pole, place it in the prepared hole and use a level to ensure it's perfectly vertical. Pour the concrete mix around the pole, making sure it's well-packed to provide stability. Allow the concrete to cure according to the manufacturer's instructions, typically 24-48 hours. For mounting on an existing structure, use the brackets and mounting hardware provided with your 30W Integrated Solar Street Light. Secure the fixture firmly, double-checking that it's level and oriented correctly for optimal solar exposure. Most 30W systems come with adjustable brackets, allowing you to fine-tune the angle of the solar panel. Aim for an angle that maximizes sunlight exposure throughout the year, typically equal to your latitude plus 15 degrees. Ensure all connections are tight and weatherproof to prevent water ingress.

Configuring and Testing the System

With the 30W Integrated Solar Street Light mounted, the final step is configuration and testing. Start by connecting the battery if it's not already integrated into the system. Most modern 30W units have plug-and-play designs, simplifying this process. Next, activate the system according to the manufacturer's instructions. This usually involves pressing a power button or removing a protective tab from the battery compartment. Allow the system to charge for a full day before testing its nighttime operation. Many 30W Integrated Solar Street Lights come with remote controls or smartphone apps for adjusting settings. Use these to configure operating modes, such as dusk-to-dawn lighting or motion-sensor activation. Test all functions, including any dimming or timing features. Verify that the light turns on automatically at dusk and off at dawn. If your system includes a display panel, check that it accurately shows battery level and solar charging status. Finally, observe the light's performance over several nights to ensure it's meeting your illumination needs and operating as expected.

Conclusion

Installing a 30W Integrated Solar Street Light is an excellent way to enhance outdoor lighting while embracing sustainable energy solutions. By following this guide, you can successfully set up your solar light, ensuring optimal performance and longevity. Remember to choose the right location, prepare the site carefully, mount the fixture securely, and properly configure the system. With proper installation and maintenance, your 30W Integrated Solar Street Light will provide reliable, eco-friendly illumination for years to come. As you enjoy the benefits of your new solar lighting system, you're not only improving your outdoor spaces but also contributing to a greener future.
